AVANTGARDE DUO

€7.000,00

S Y S T E M D A T A:

Frequency response satellite 170 - 20.000 Hz

Frequency response subwoofer 18 - 220 Hz

Power capacity 100 Watts

Sensitivity (1W/1m) > 104 dB

Crossover frequencies 170/3.500 Hz

Nominal impedance 8 Ohm

Recommended amplification > 10 Watts

Recommended room size > 20 m 2 / 200 ft 2

CDC (Contr. Dispersion Characteristics) yes

H O R N:

Horn-type spherical horn

Horn material ABS injection molding

Horn finish front- and backside polished

Dispersion type 180°

Horn mouth area low mid range 0.353 m 2

mid range n / a

high range 0.025 m 2

Horn mouth diameter low mid range 670 mm / 26.4 in

mid range n / a

high range 180 mm / 7.1 in

Horn length low mid range 370 mm / 14.6 in

mid range n / a

high range 85 mm / 3.3 in

D R I V E R S:

Diameter low mid range 170 mm / 6.5 in

mid range n / a

high range 25.4 mm / 1.0 in

S U B W O O F E R:

Integrated yes

Number of drivers per subwoofer 2 x 10 in

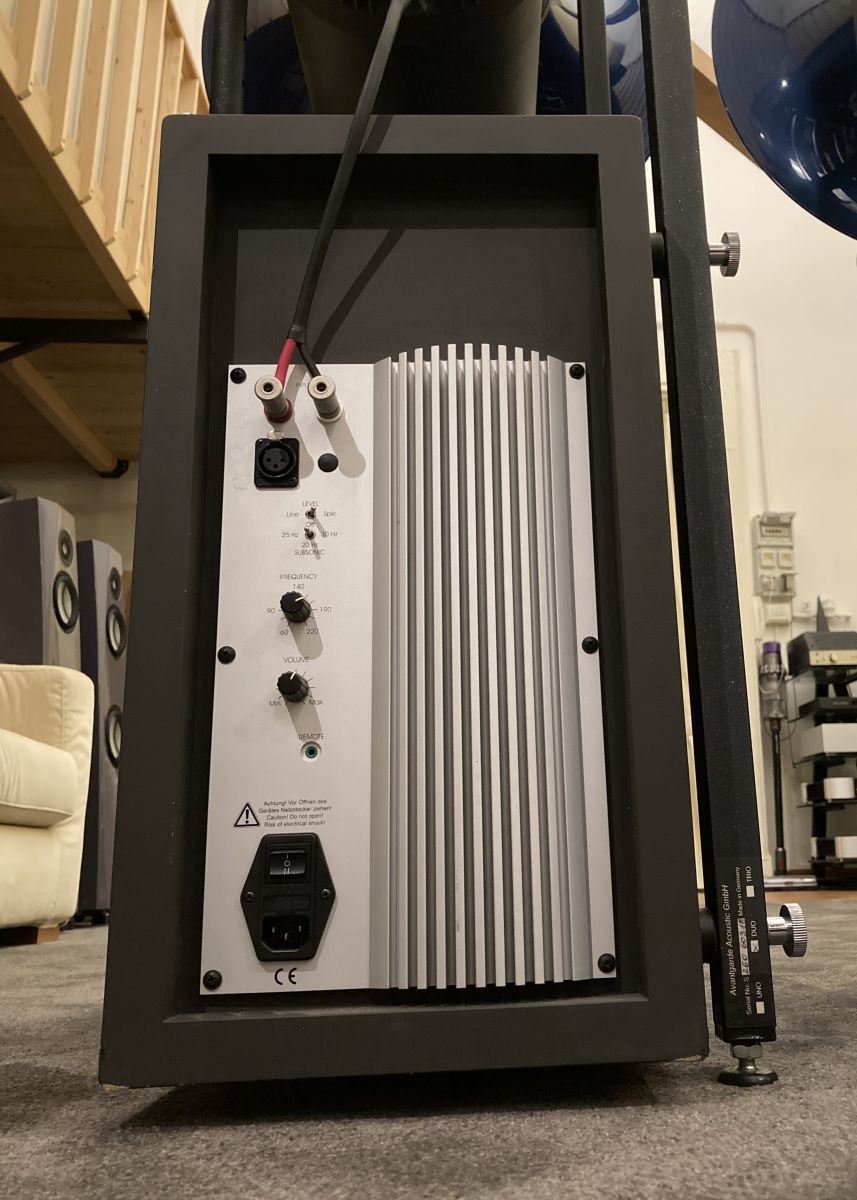

Amplifier PA 103

Active power output 250 Watts

Adjustable crossover frequency yes

Adjustable volume yes

D I M E N S I O N S – W E I G H T:

Dimensions width (p/Satellite) 670 mm / 26.4 in

depth (p/Satellite) 680 mm / 26.8 in

height (p/Satellite) 1.550 mm / 61.0 in

Weight Satellite (p/piece) 70 kg / 155 lbs

T W E E T E R D R I V E R:

Throat diameter 25 mm

Voice coil diameter 44.4 mm

Nominal impedance 16 Ohms

Power capacity 50 Watts

Frequency range 800 – 20.000 Hz

Sensitivity 104 dB

Magnetic assembly weight 3.2 kg

BL factor 9.8 N/A

Magnet Ferrite

Diaphragm Aluminium

Overall diameter 144 mm

Depth 67 mm

Net weight 3.30 kg

M I D R A N G E D R I V E R:

Nominal diameter 165 mm

Voice coil diameter 37 mm

Nominal impedance 6.5 Ohms

Power capacity 100 Watts

Sensitivity 104 dB

Magnetic assembly weight 3.0 kg

Magnet diameter 135 mm

Moving mass 10.9 g

Magnet Ferrite

Diaphragm Crosskevlar – Paper

Overall diameter 165 mm

Depth 71 mm

Net weight 2.7 kg

S U B 2 2 5 B A S S D R I V E R:

Nominal diameter 250 mm

Voice coil diameter 77 mm

Nominal Impedance 8 Ohms

Power capacity 250 Watts

Sensitivity 96 dB

Magnetic assembly weight 6.5 kg

Magnet diameter 192 mm

Moving mass 59 g

Max. excursion +/– 9 mm

BL factor 20.2 N/A

Magnet Ferrite

Diaphragm Paper

Overall diameter 270 mm

Depth 116 mm

Net weight 7.4 kg
