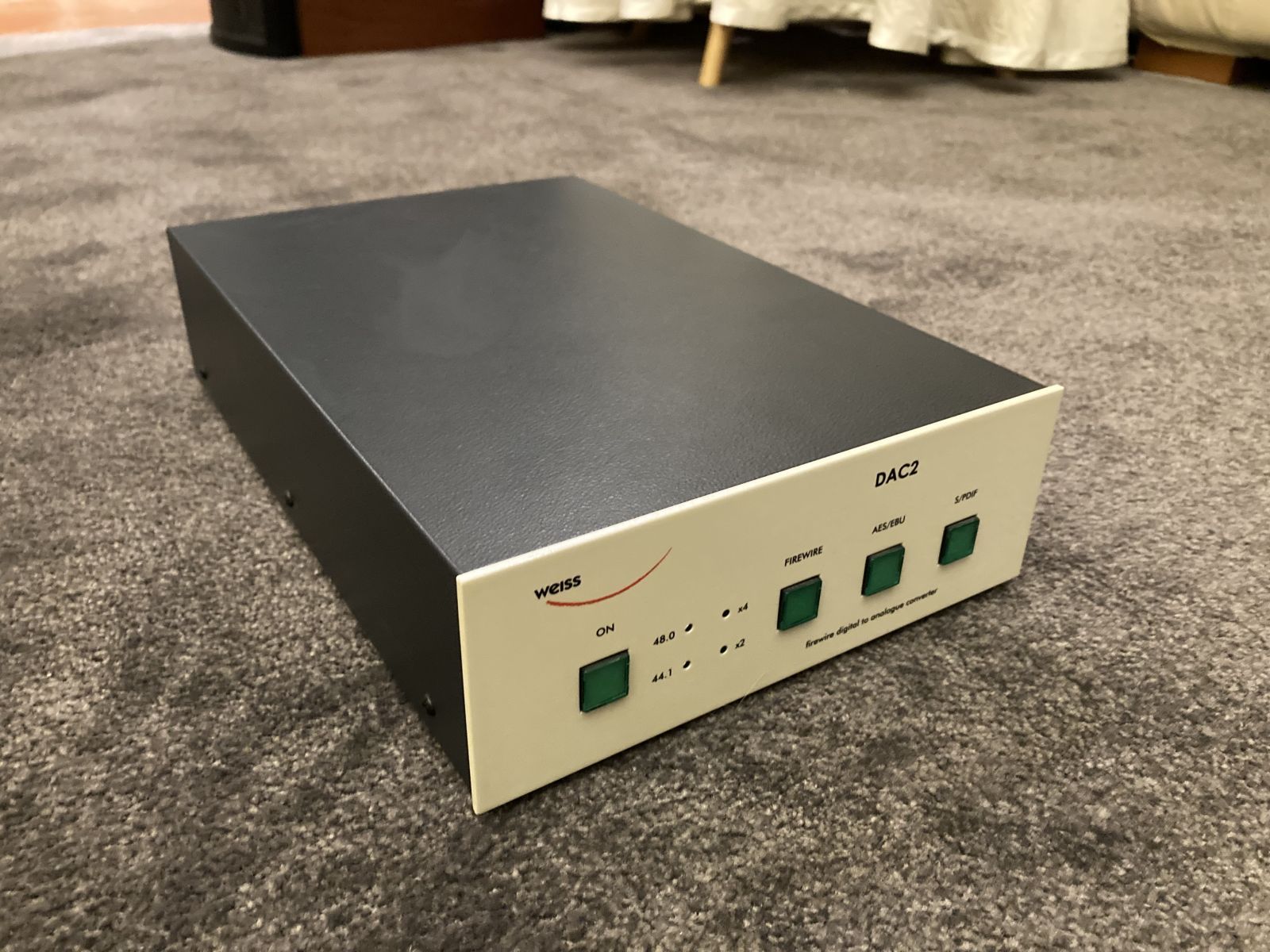

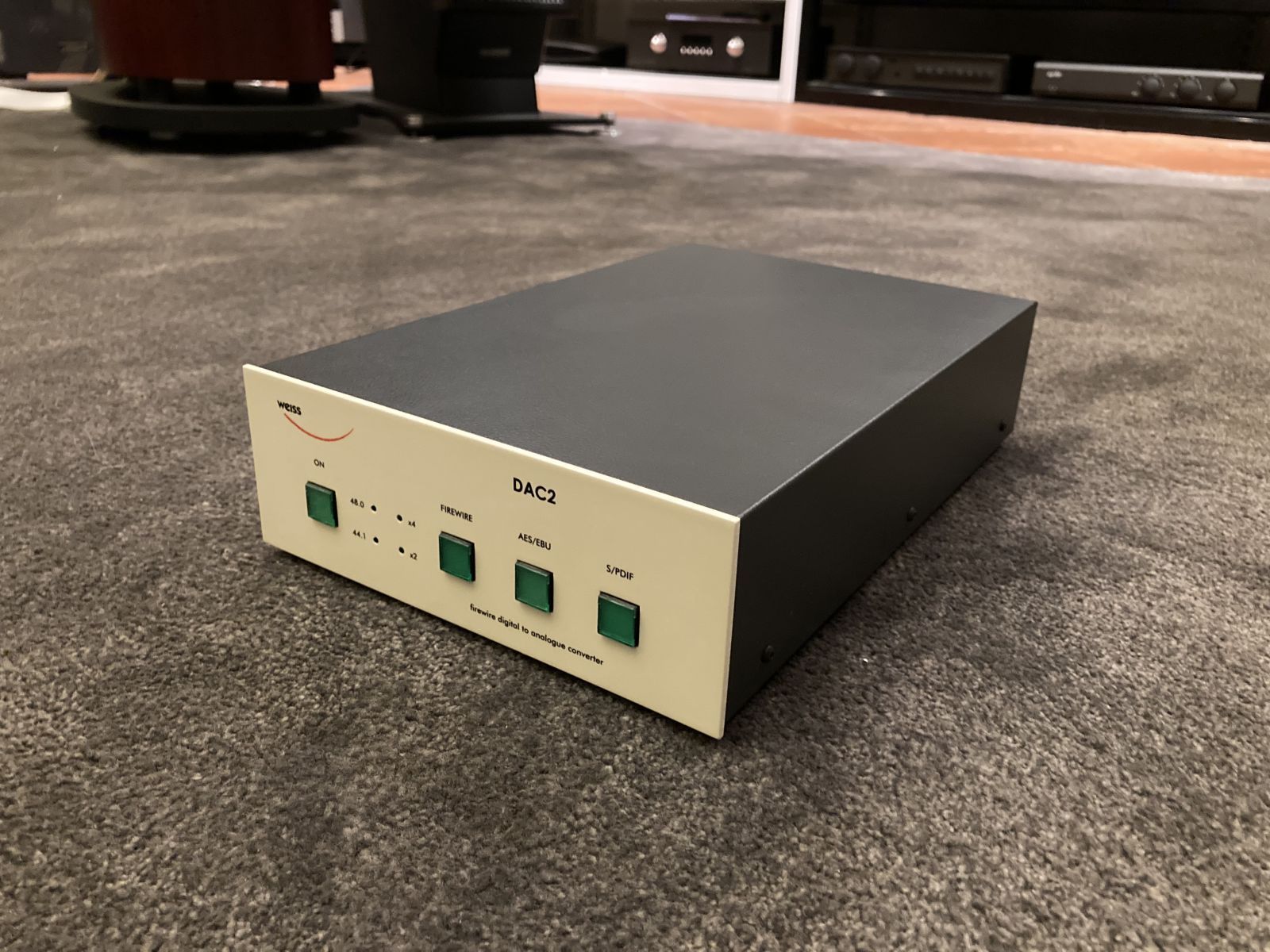

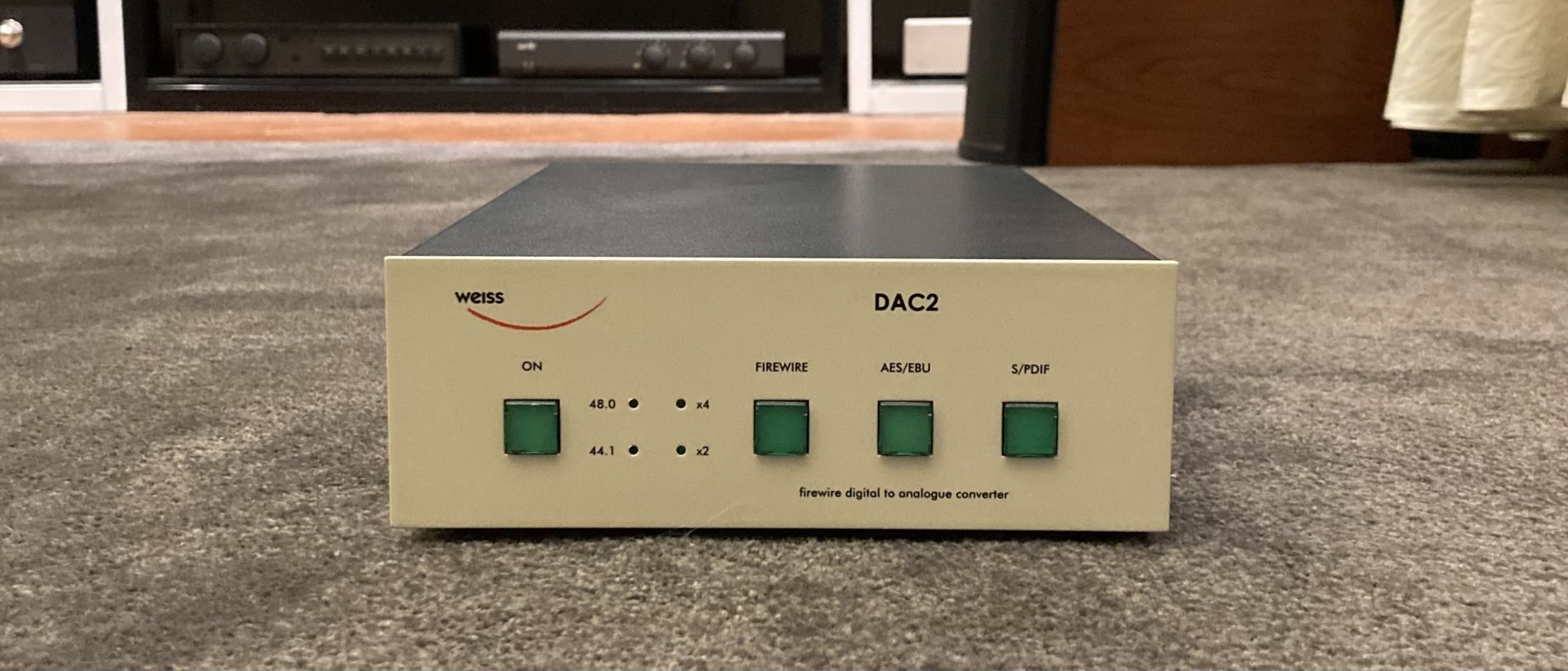

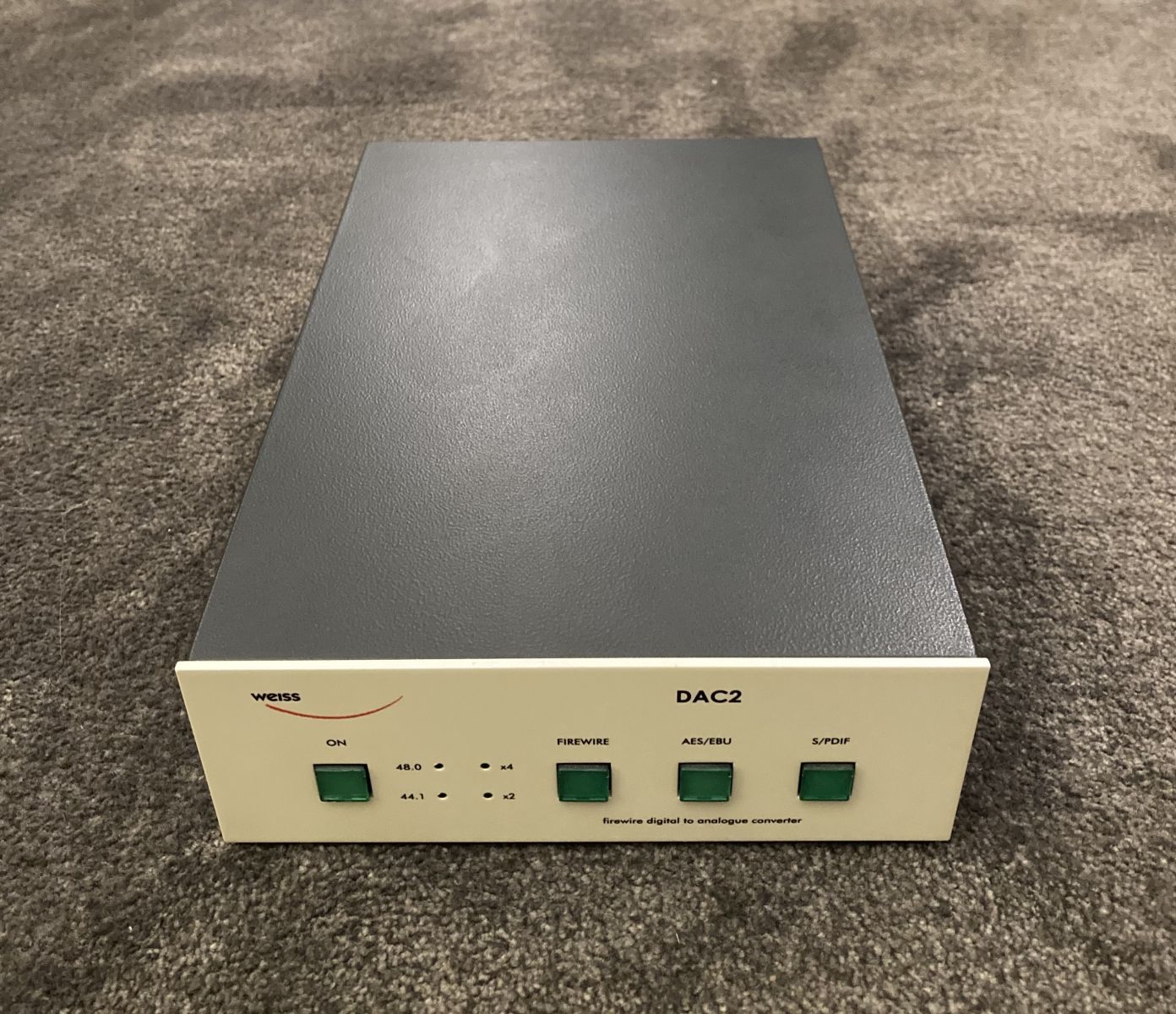

WEISS DAC2

€700,00

Specifications:

Power

Mains voltage: 115 V or 230 V with voltage selector
Fuse rating: 250 mA at 115 V, 500 mA at 230 V, slow blow
Power consumption: 7 VA max.
Power consumption in stand-by mode: 3 VA max.

Size

Depth: 30 cm
Width: 18,8 cm
Height: 6,6 cm (1.5HU)

AES/EBU Input

Sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Maximum input word-length: 24 Bits
Channel Status Data: Input accepts professional or consumer format

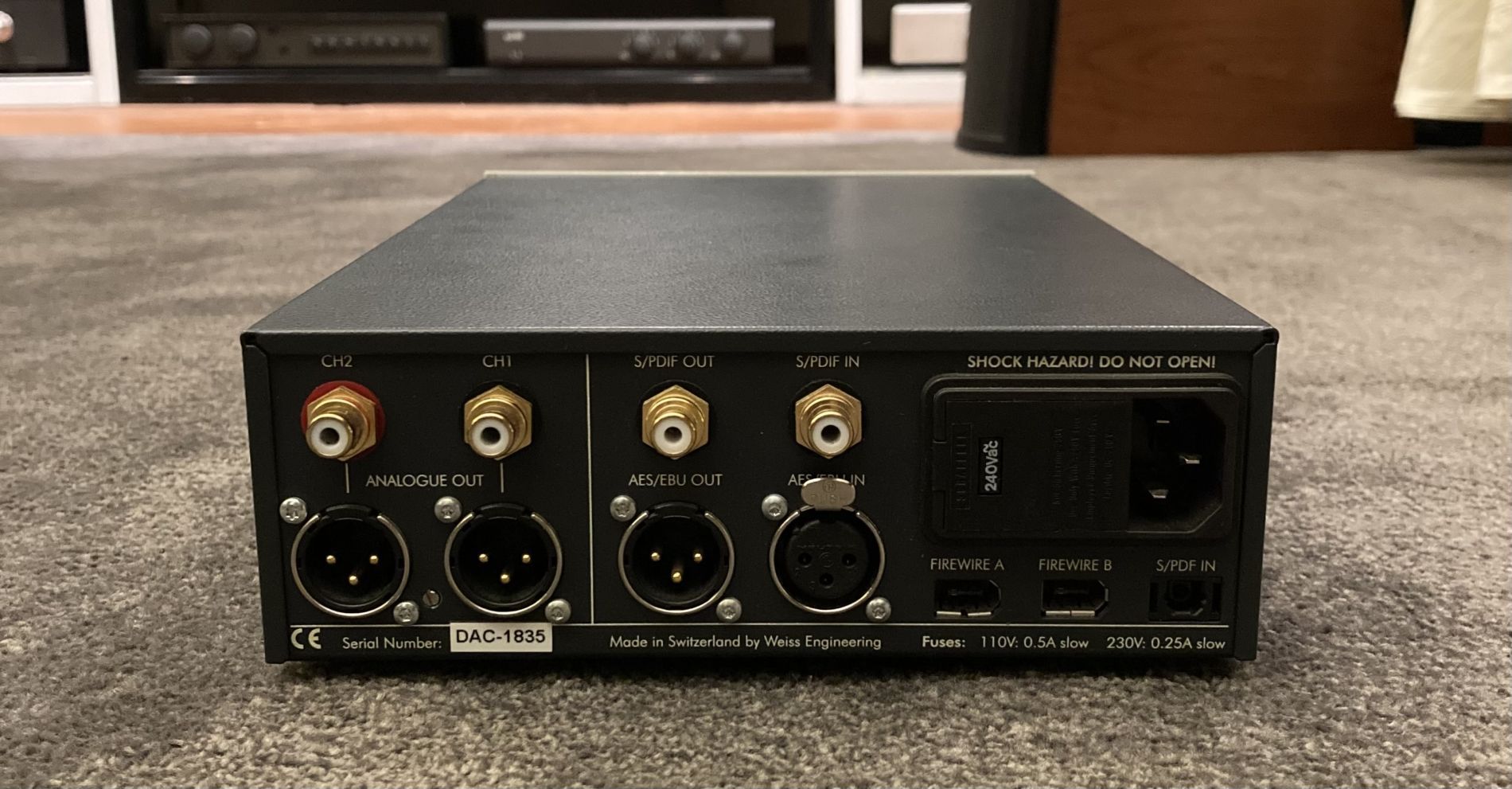

Connector: One XLR female (110 Ω), one RCA (75 Ω), one TOSLINK (optical)

AES/EBU Output

One XLR male connector
One RCA connector

Firewire Input/Output

Two Firewire 400 sockets to allow for daisy-chaining of Firewire units
Balanced Analog Output
Two XLR male connectors, pin 1 ground, pin 2 hot, pin 3 cold
Symmetrical
Servo circuit, i.e. pin 3 can be grounded for asymmetrical outputs
Not earth free
Short circuit proof
DC coupled
Output impedance: 50 Ω

Output level selectable via a rotary switch at the back:

+17 dBu (5.48 Vrms) with a 0 dBFS sine wave input
+11 dBu (2.74 Vrms) with a 0 dBFS sine wave input
+7.2 dBu (1.78 Vrms) with a 0 dBFS sine wave input
+4.8 dBu (1.35 Vrms) with a 0 dBFS sine wave input

Single Ended Analog Output

Two RCA connectors
Asymmetrical
Short circuit proof
DC coupled
Output impedance: 50 Ω

Output level selectable via a rotary switch at the back:

+17 dBu (5.48 Vrms) with a 0 dBFS sine wave input
+11 dBu (2.74 Vrms) with a 0 dBFS sine wave input
+7.2 dBu (1.78 Vrms) with a 0 dBFS sine wave input
+4.8 dBu (1.35 Vrms) with a 0 dBFS sine wave input

Options

Thunderbolt interface via the Apple® Thunderbolt adapter
USB interface with DSD to PCM conversion capability
ST glass fiber input
Software
Firewire drivers for Windows™ and OSX™ operating systems are supplied

Measurements
Measurements taken at the following conditions (unless otherwise noticed): +17 dBu output level, 0 dBFS input level, 48 kHz sampling frequency (fs), 22 kHz measurement bandwidth.

Frequency Response:
