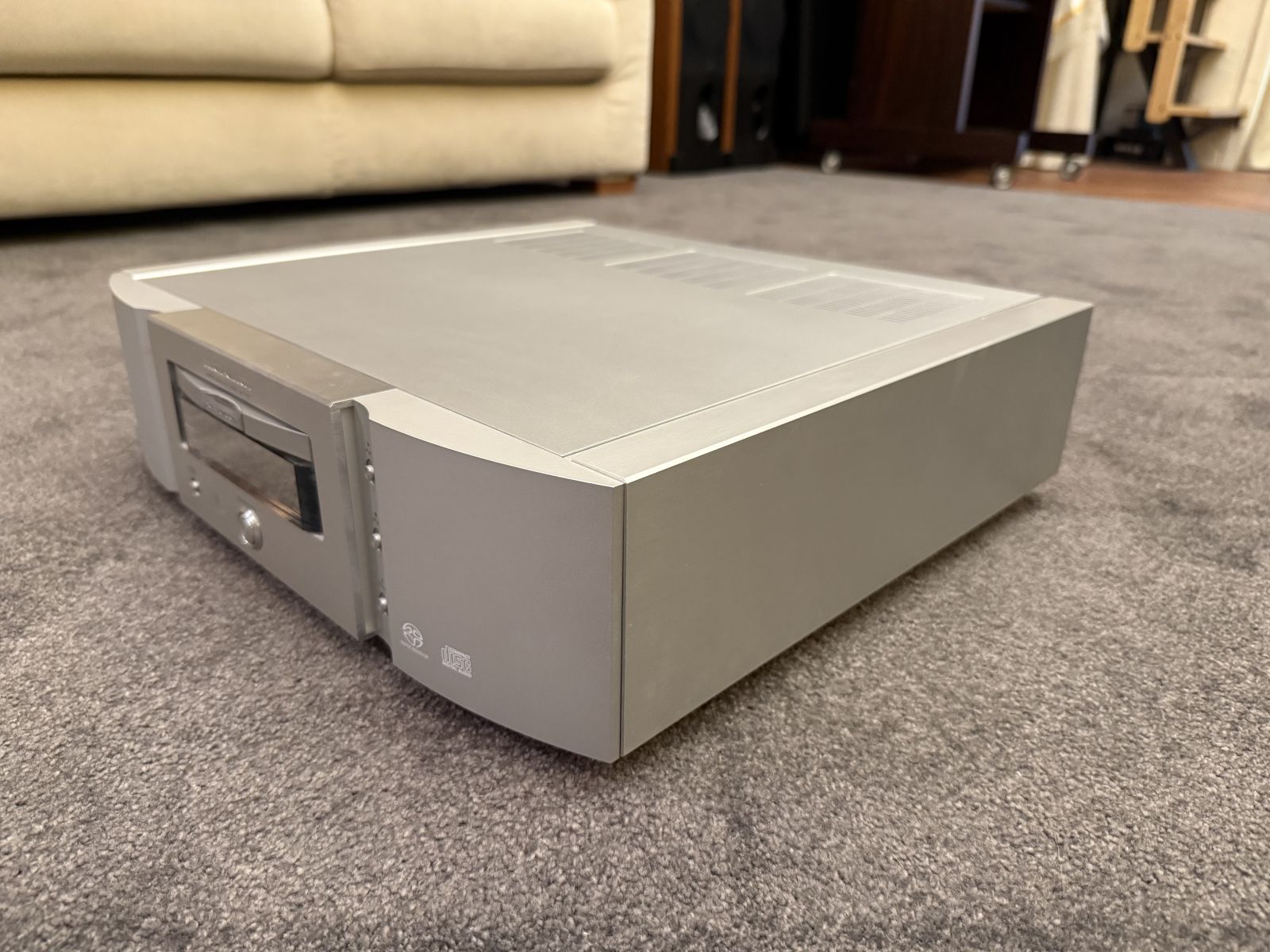

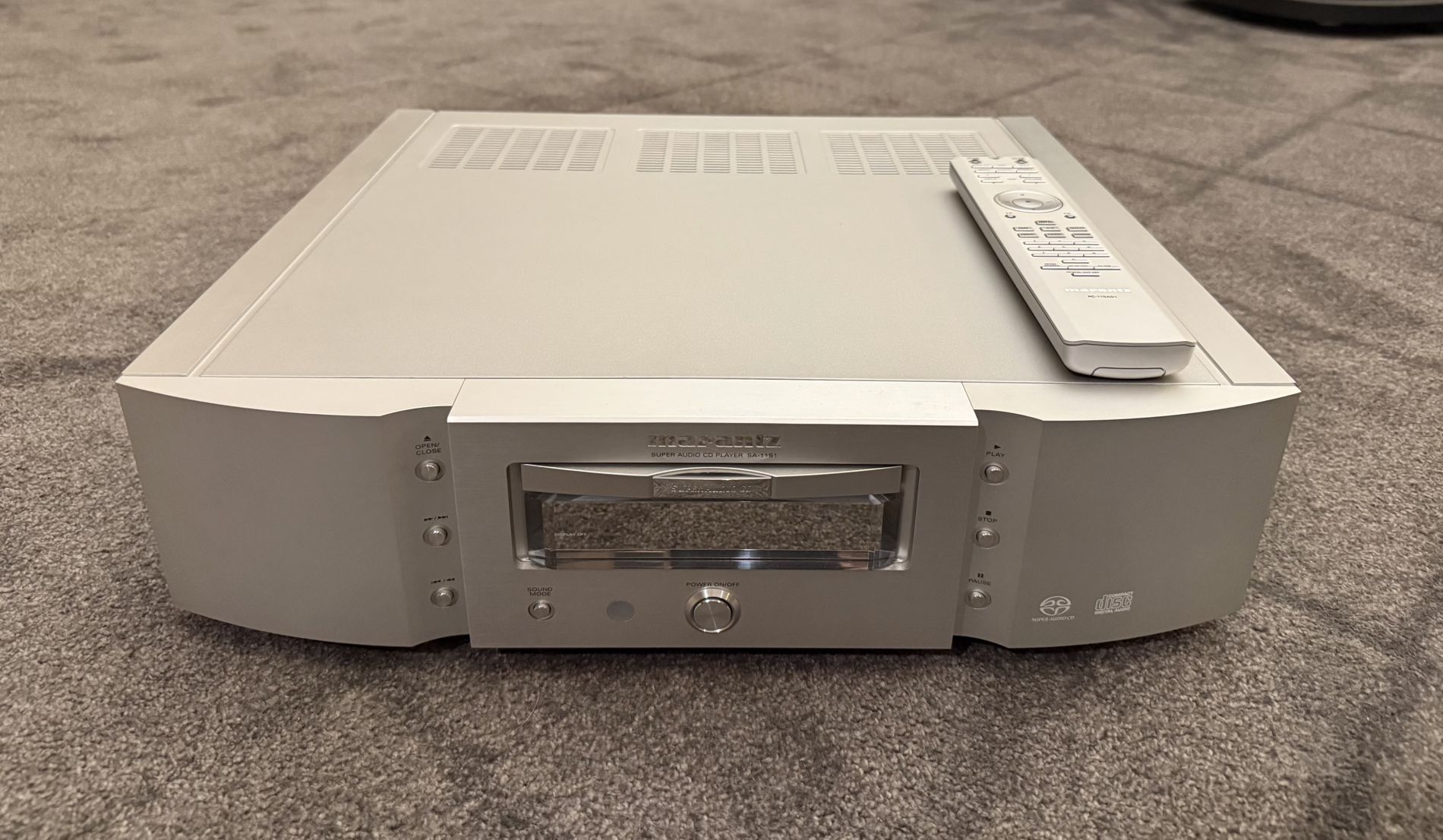

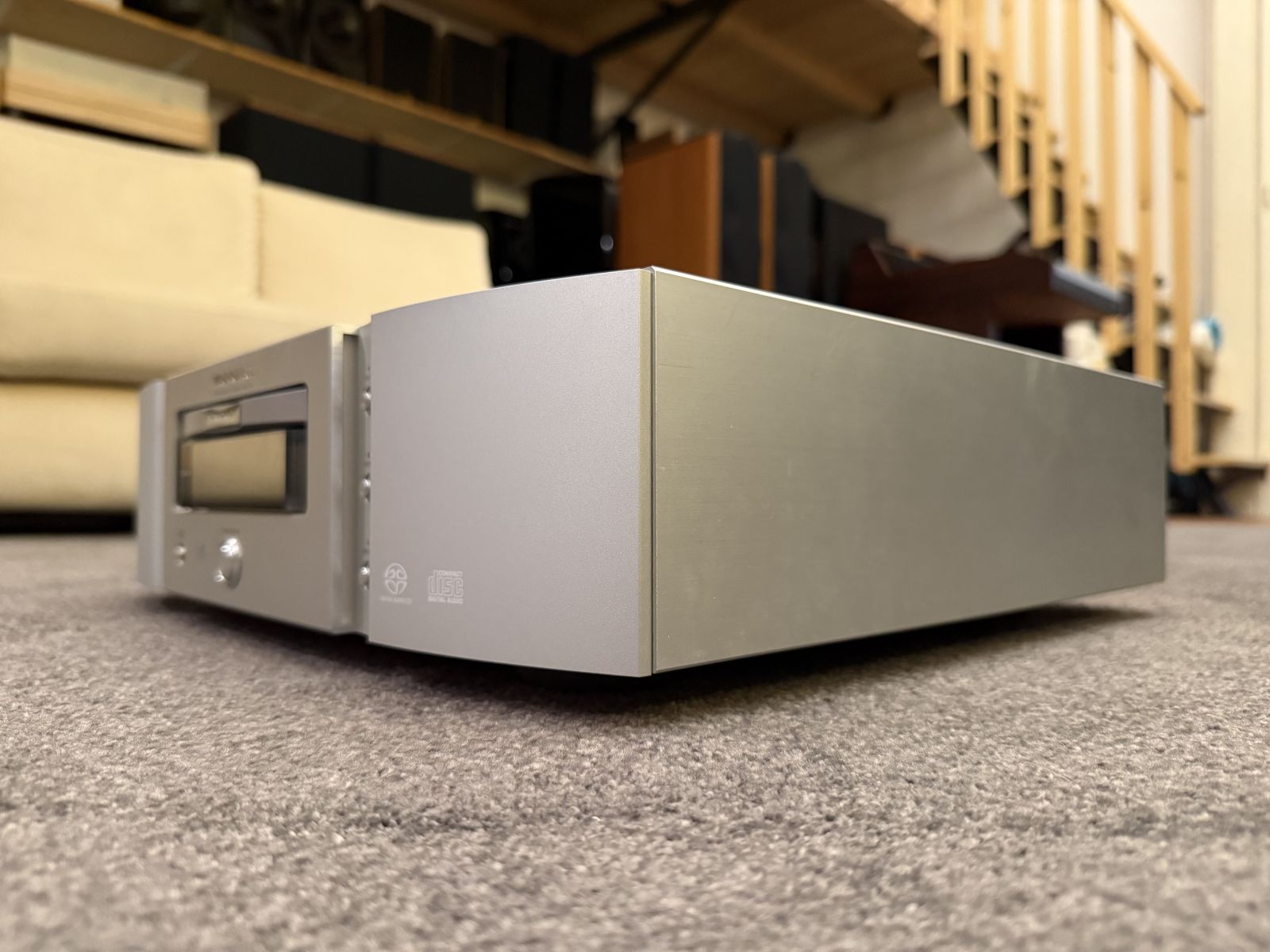

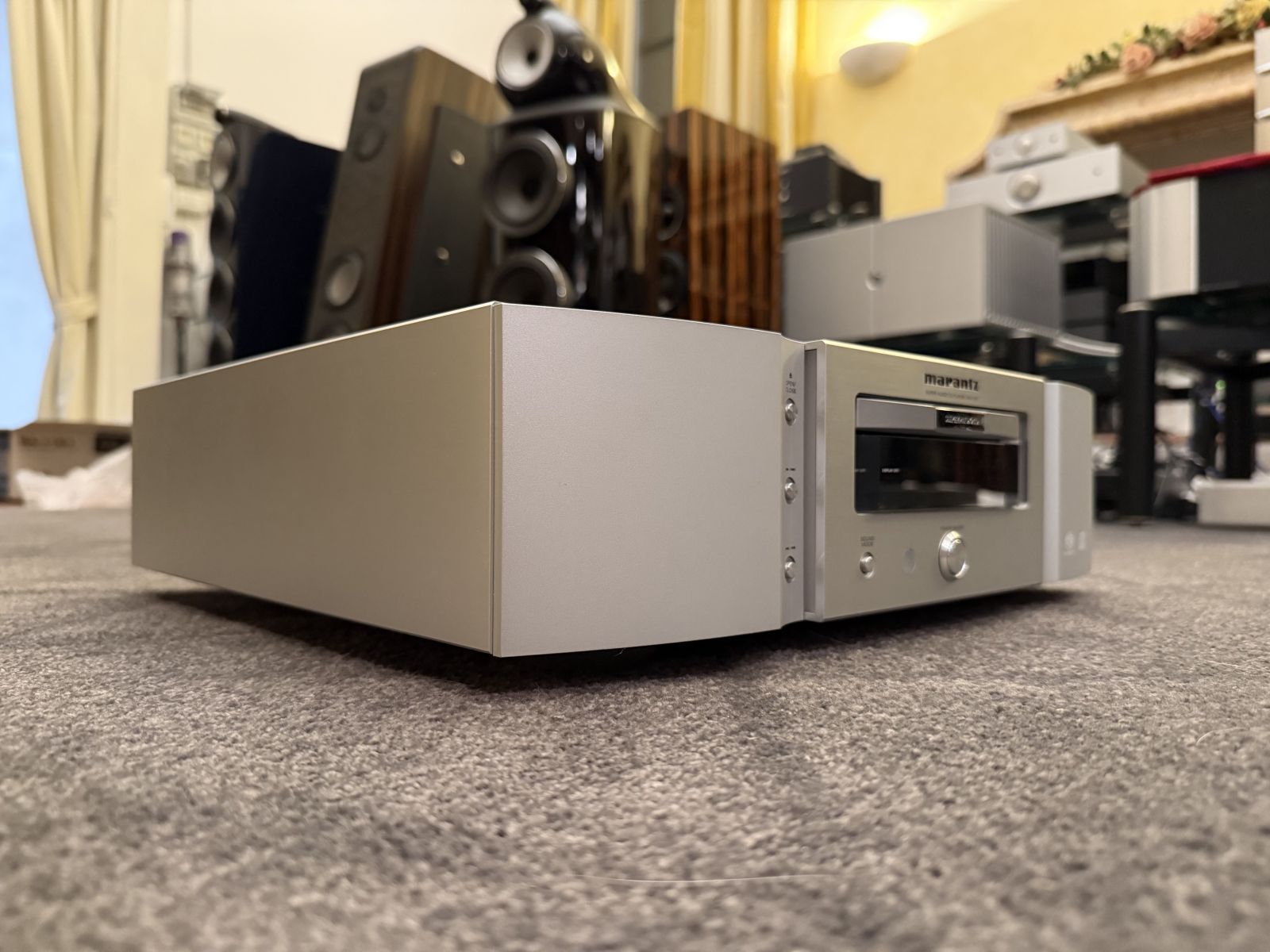

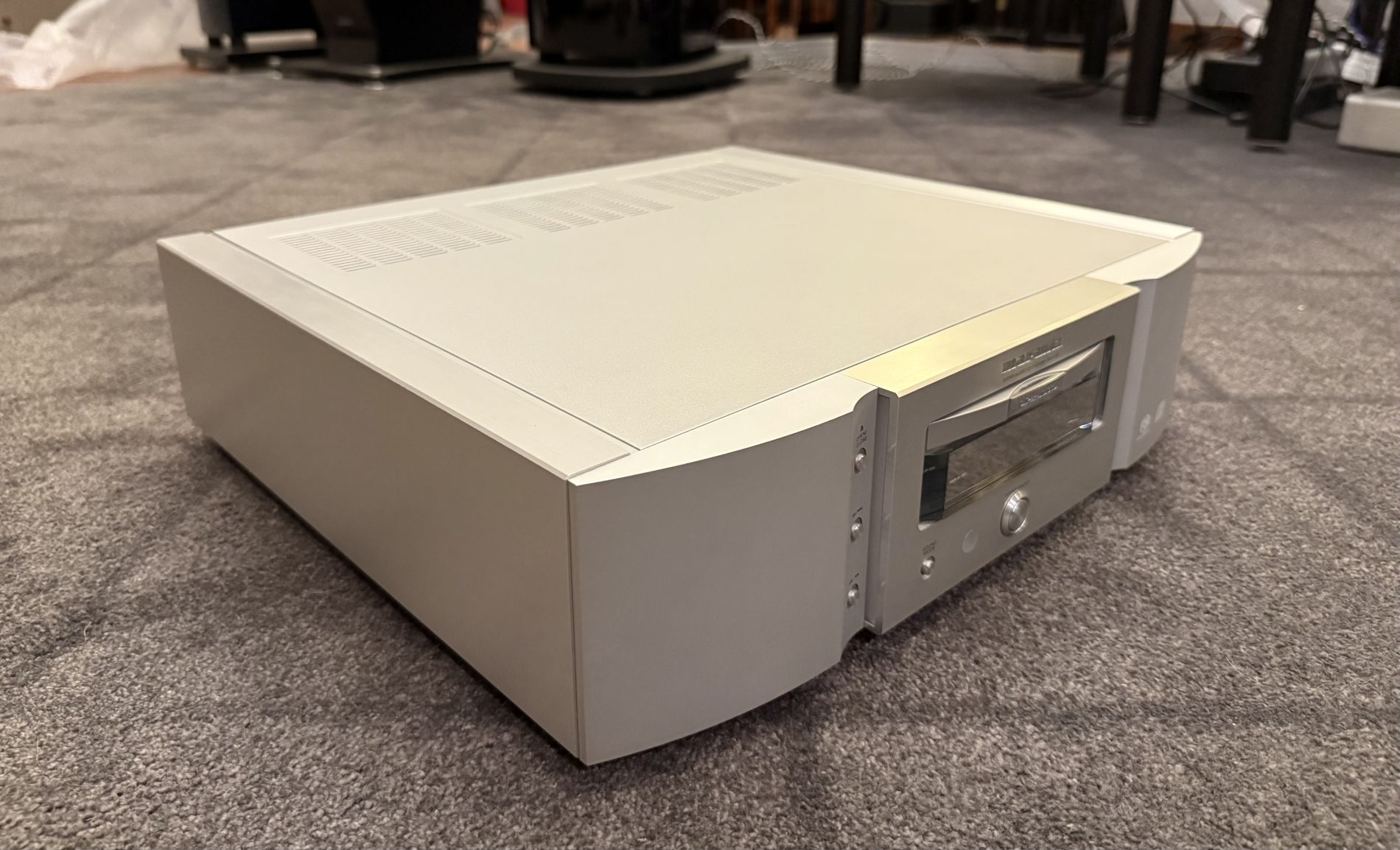

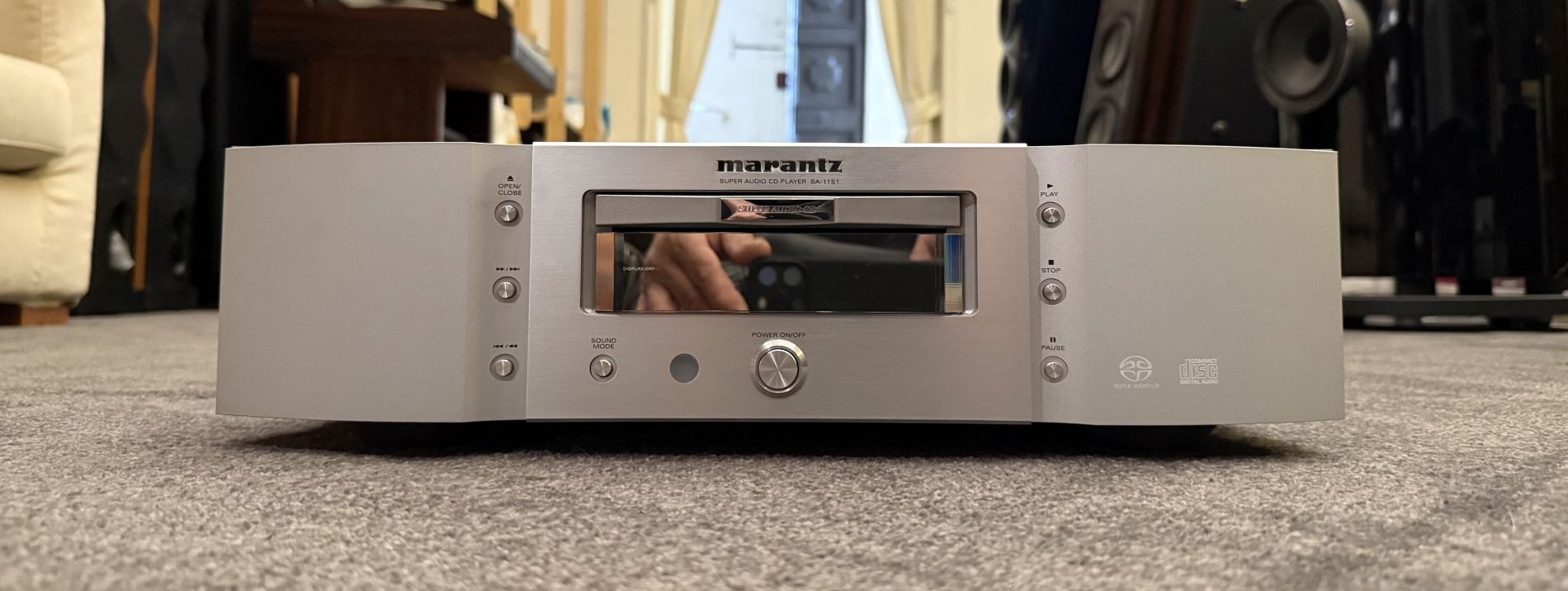

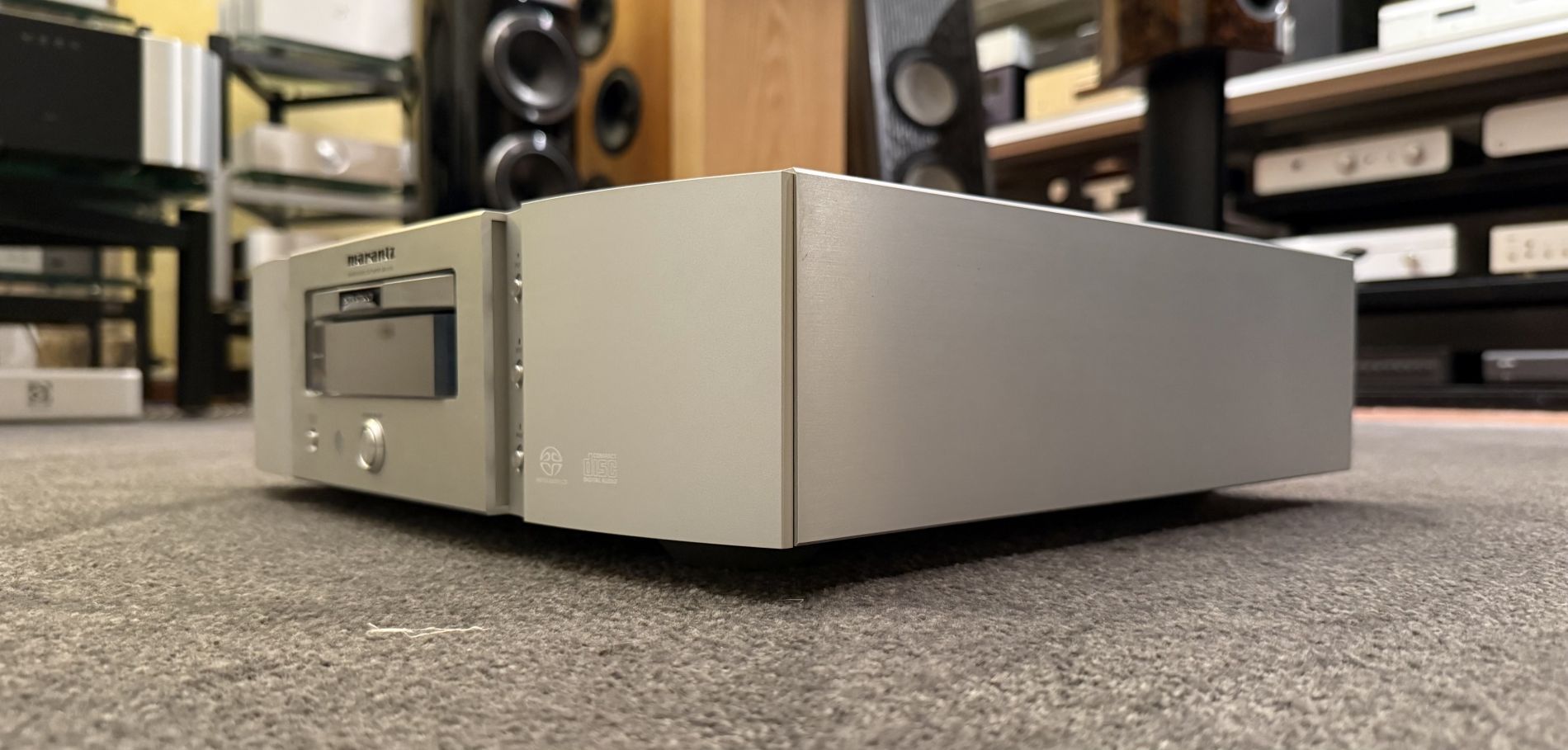

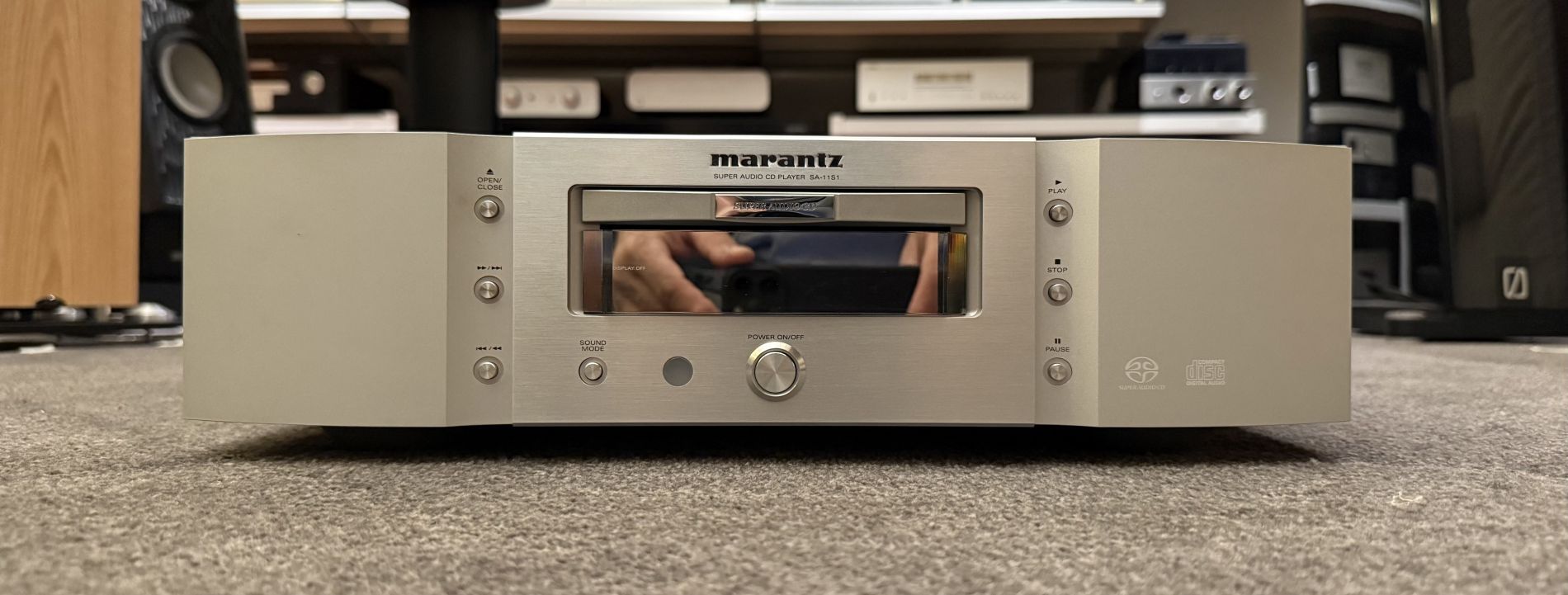

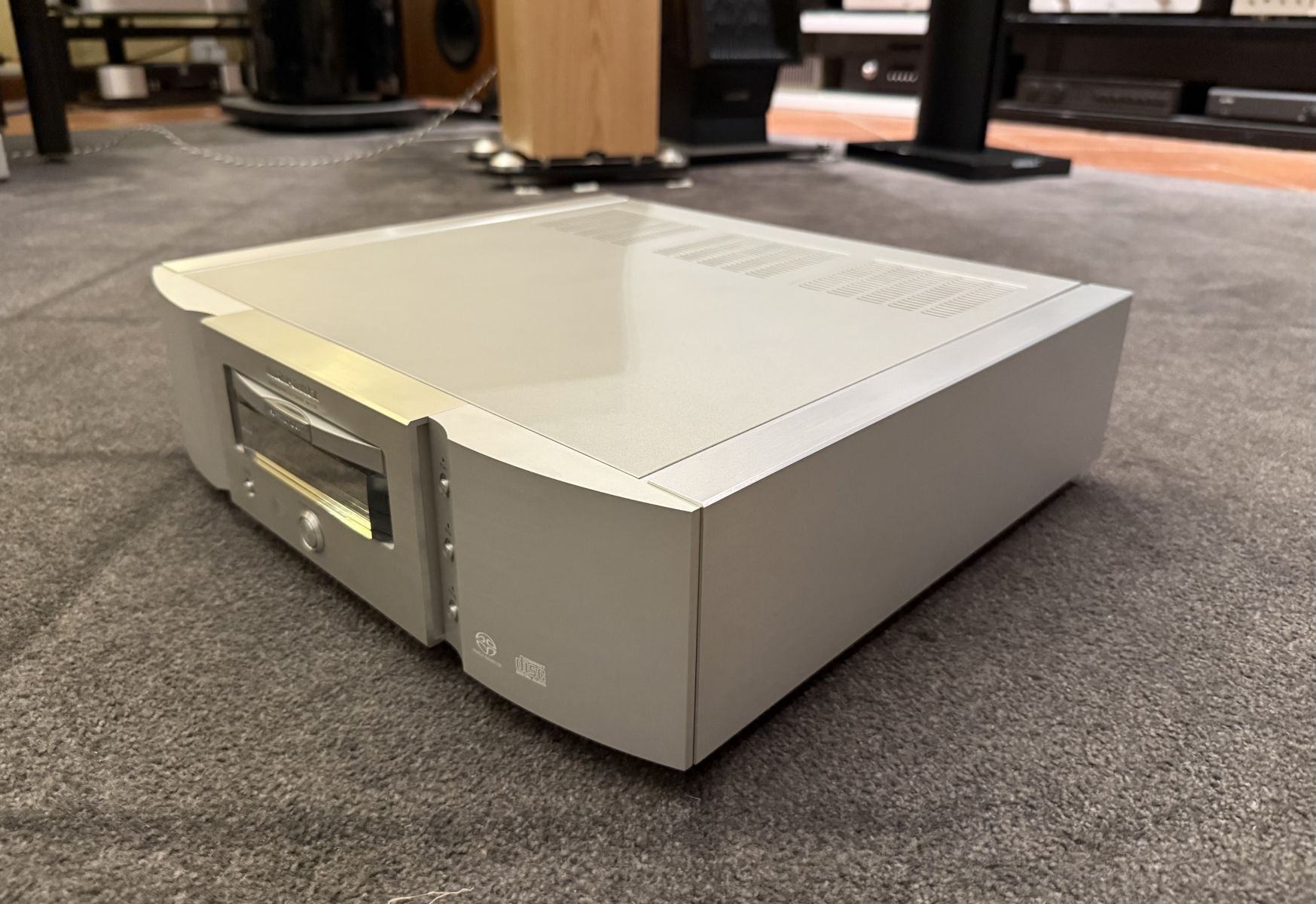

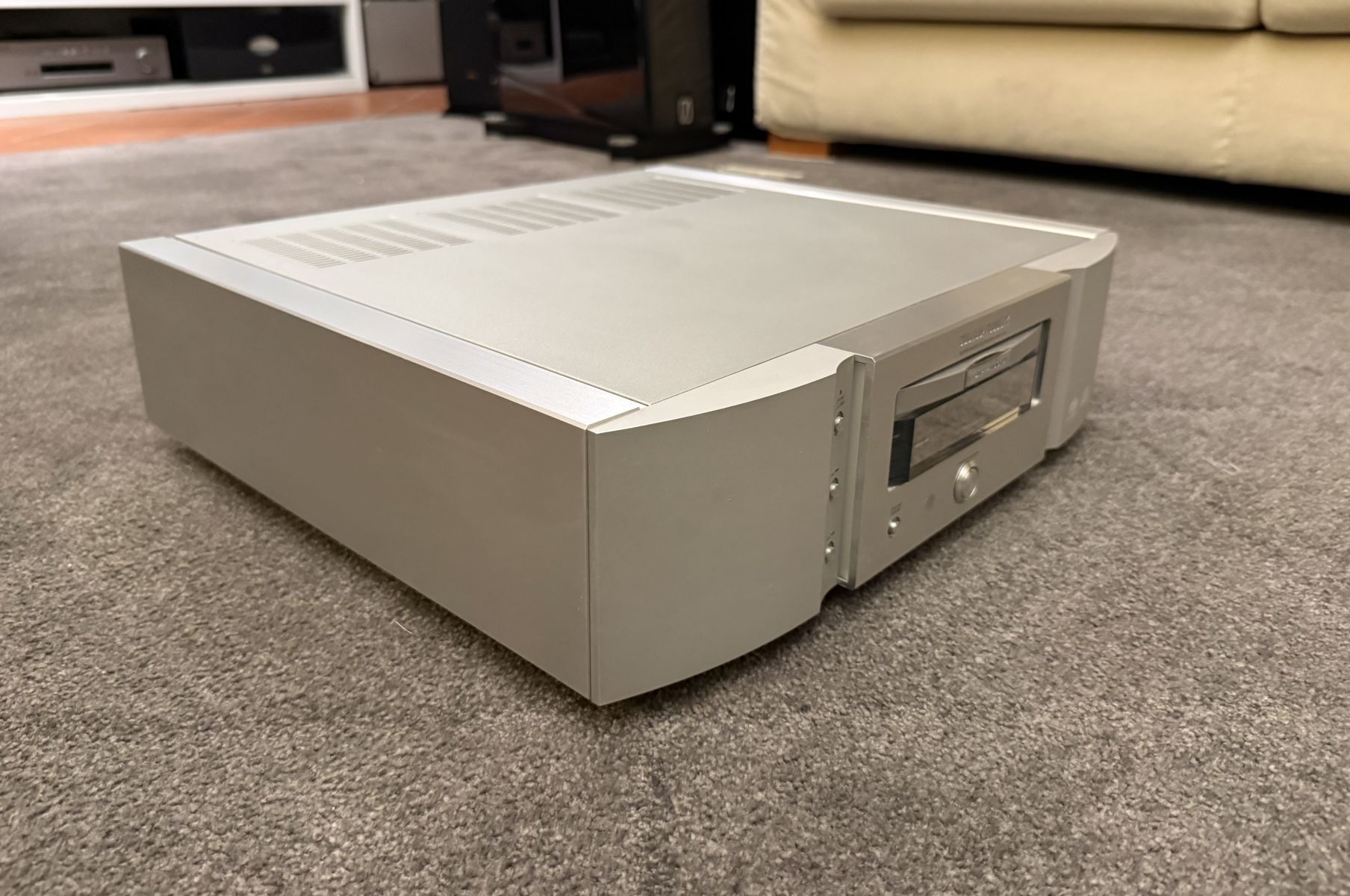

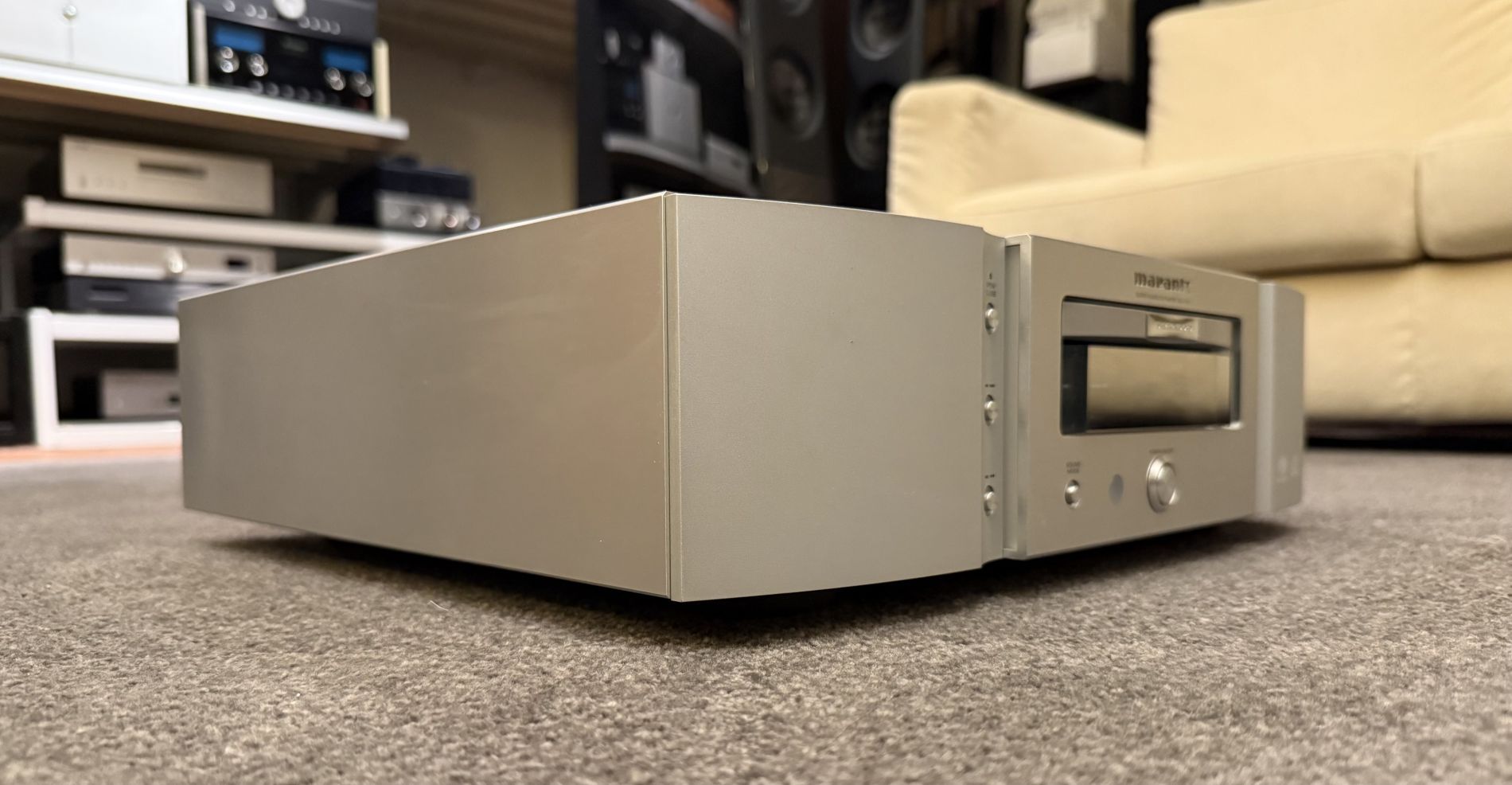

MARANTZ SA-11S1

€900,00



TECHNICAL SPECIFICATIONS:

Plays Two-channel SACD, CD, CD-R and CD-RW
Two Crystal Semiconductor High Speed DACs (In a Dual Differential Mode)
New High Speed SACD Drive Mechanism
New HDAM2 SA Buffer Amps
Audiophile Grade (Toroidal) Power Transformer (encased in copper)
Full Copper Chassis With Additional Copper Shielding in Critical Areas
Extensively Shielded Circuit Board Construction
DoubleLayer Bottom Plate
Balanced Outputs, now utilizing HDAM2 output stages
Gold Plated Connectors
D-BUS remote connection
Detachable Power Cord
Aluminum Top Cover Remote Control Included
Three year limited warranty



COMPONENT SPECIFICATIONS
Playback Formats: CD/CD-R/RW/SACD
Digital Audio Chips (DAC): SM5866AS
Transformer: Super ring toroidal (copper encased)
HDAM SA2: Standard/current feedback
Selectable filters: DSP (Marantz Custom)
Shielding: Internal Copper
Chassis: Copper Plated

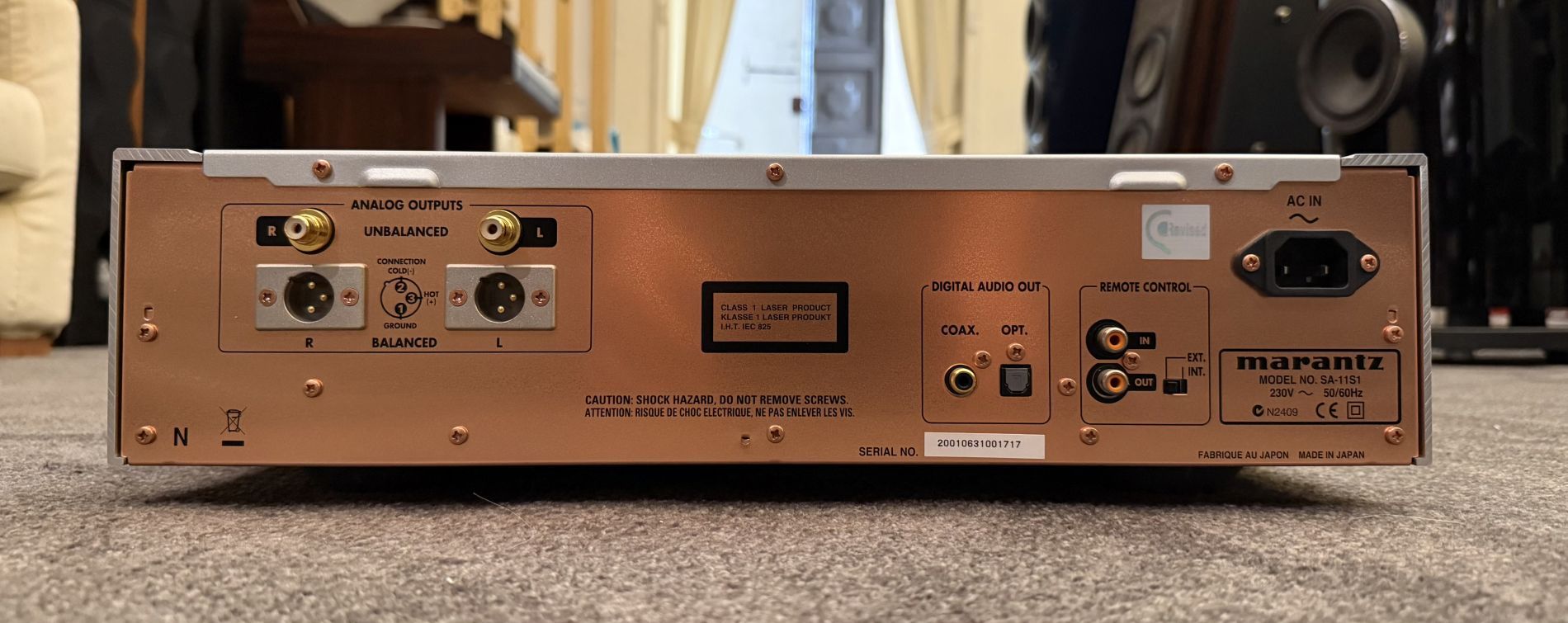

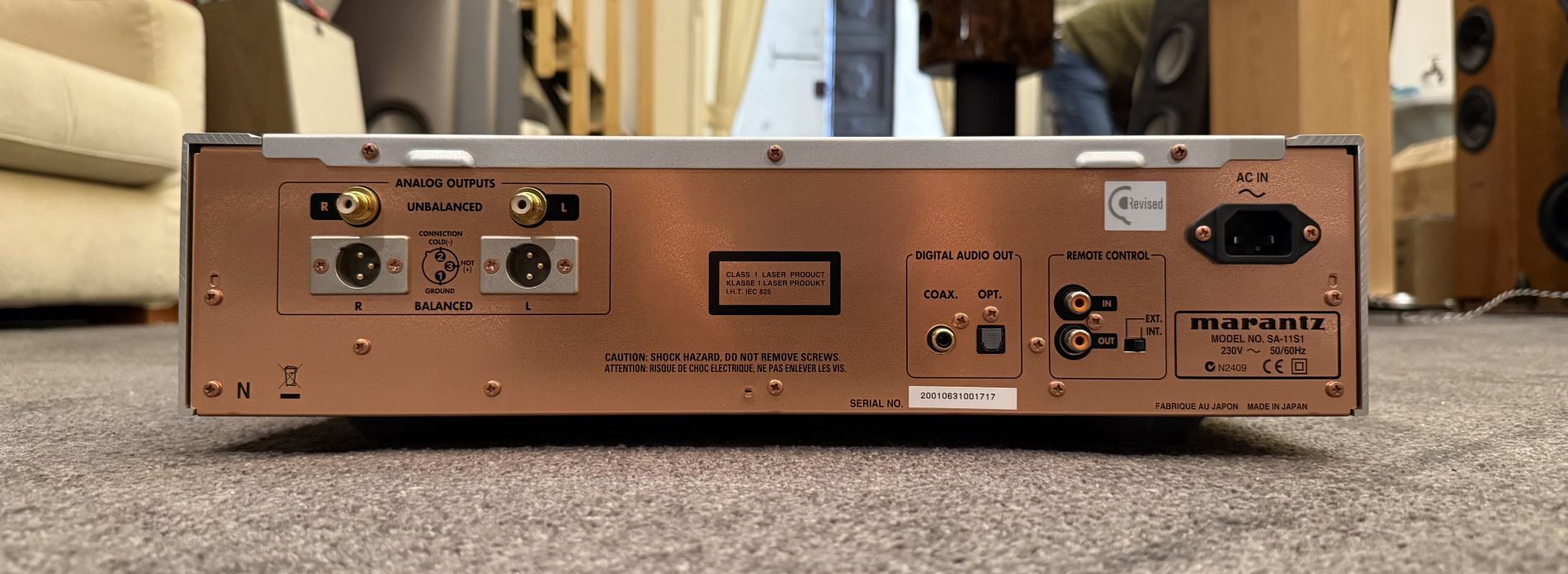

Audio L/R: Gold Plated RCA/XLR





DIGITAL OUTPUTS

Coaxial: 1
Optical: 1



AUDIO SPECIFICATIONS
SACD AUDIO
Sampling Frequency: 2
Dynamic Range: 114dB
Frequency Response (Cust.): 2 – 50,000Hz ( +0, -3dB)
S/N: 114 dB
THD+N (1 kHz): 2 – 50,000Hz ( +0, -3dB)



CD AUDIO
Sampling Frequency
Dynamic Range: 100 dB
Frequency Response (Custom): 2 – 20,000Hz ( +0, -3dB)
Frequency Response (Custom): 2 – 20,000Hz ( +0, -3dB)
S/N: 108 dB
THD+N (1 kHz): 0.0008
Frequency Response: 2 – 20000Hz ( +0, -3dB)



GENERAL
Color:  silver gold
Front panel: Metal
Remote Control: RC-11SAS!
Dimensions Inch 440 x 123 x 418
Weight: 14 kg.
